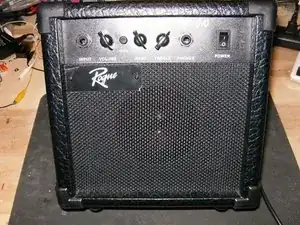

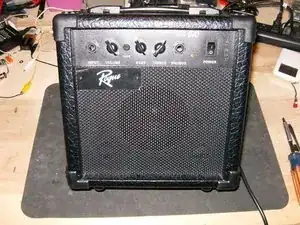

Repairing the audio amplifier
Herramientas
Estas son algunas de las herramientas comunes que se utilizaron para trabajar en este dispositivo. Es posible que no necesites todas las herramientas para cada procedimiento.
Features
Compact size
Switch for clean or overdriven sound
Master volume
2-band tone control
1/4" Headphone out
Lighted on/off switch
MAXIMUM POWER OUTPUT: 10 Watts
SPEAKER: 5", 8 Ohm
DIMENSIONS (H x W x D): 260mm x 230mm x 155mm, 10.2" x 9" x 6.1"
POWER CONSUMPTION: 12 Watts
