Starlink Rectangle Dish Teardown
Herramientas
Estas son algunas de las herramientas comunes que se utilizaron para trabajar en este dispositivo. Es posible que no necesites todas las herramientas para cada procedimiento.
Background Information

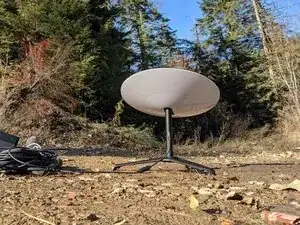

Starlink is a satellite internet access service operated by the SpaceX company. As of March 2022 the company offers 2 different model of dish and router combinations. Users have the option of choosing between either a round dish, or a rectangular dish for use.
Tech Specs
Satellite Dish
- Diameter/Dimensions: 23.2 in, 19 in x 12 in
- Weight: 7.3 kg, 4.2 kg
- Mast Diameter: 1.4 in, 1.3 in
- Operating Temperature: -22°F to +122°F, -22°F to +122°F
- Outdoor Use Rating: IP54
Networking
- Wireless LAN Standard: IEEE 802.11a/b/g/n/ac standards
- Dual Band: 2.4 GHz and 5 GHz
- MU-MIMO Technology: 2x2, 3x3
- Security: WPA2 and WPA3
- Operating Temperature: +32°F to +86°F, -22°F to +122°F
- Water Resistance: Indoor use, IP54 Rated
- Ethernet: 1 x Ethernet port, Ethernet adapter
Power Supply
- Input: 100-240 VAC 50/60 Hz, 2.5A Max
Cables
- Dish to Router: 100 ft, 75 ft
- Power Cable: 6.5 ft, 6 ft
Base
- Dimensions
- Length: 11 in, 22 in
- Height: 4 in, 4.75 in
Box Dimensions
- Weight: 13.6 kg, 8.5 kg
- Dimensions: 33 in x 26 in x 9 in, 23.5 in x 14 in x 10.6 in
